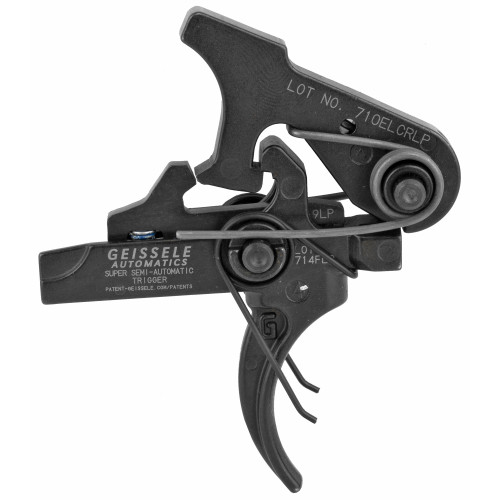

This is a semi-automatic-only version of Geissele Automatics’s Super Select-Fire trigger. The large pin dimension is 0.169 inches, whereas the standard pin dimension is 0.155 inches. The SSA® Large Pin is a non-adjustable combat trigger that is a precision two-stage trigger and allows precise and accurate trigger control. The SSA’s® two-stage design allows the trigger to be light enough for accurate and precise shots, but forgiving enough for CQB. The SSA® is safety certified by Crane Naval Surface Warfare Center. It is recommended for demanding applications such as Law Enforcement use, Close Quarters Battle (CQB) and mid-range carbine work.
PLATFORM: | AR15/AR10 |
TYPE: | 2 Stage |
1st STAGE WEIGHT RANGE: | 2.75 - 3 lbs. |
2nd STAGE WEIGHT RANGE: | 1.5 - 1.75 lbs. |
TOTAL PULL WEIGHT RANGE: | 4.25 - 4.75 lbs. |
ADJUSTABLE: | No |
TRIGGER BOW TYPE: | M4 Curved |
RECOMMENDED USE: | Law Enforcement, Home Defense, Hunting |
PIN SIZE: | 1990-2009 Colt Large Pin |
Weapon Platform | AR15/AR10 |
---|---|
Intended Function | Military, Law Enforcement, Hunting |
Trigger Bow Type | M4 Curved |
Notes |
Please note, Geissele triggers are designed for mil-spec AR15/M4 carbine rifles. Their AR15 triggers are not compatible with the Sig MPX/MCX weapons or Pistol Caliber Carbine AR15/M4 variants. Using them in these platforms will void the warranty. This is a large pin version of the Geissele Super Semi-Automatic (SSA®) trigger for use in Colt AR rifles manufactured from 1990 to 2009. |
Size | 1990-2009 Colt Large Pin |
- Manufacturer Part Number:
- 05-123
- Sub Category:
- Triggers
- Trigger Type:
- Two Stage
- Trigger Bow Type:
- Curved
- Pull Weight:
- 4.25-4.75LB
- Adjustable:
- No
- Drop In:
- No
- Firearm:
- AR15/AR10
- Made in the USA:
- Yes
