BACKSTRAP + MAGWELL FOR SIG SAUER®

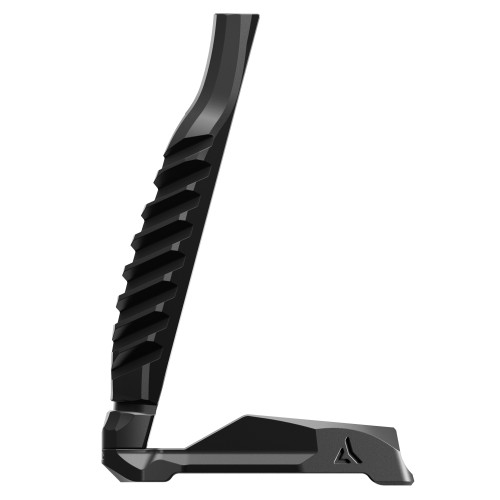

The Radian P365-XMACRO Backstrap and Magazine Well were designed in tandem to provide users with a rock-solid and enhanced grip on one of the most popular everyday-carry firearms on the market today – The Sig Sauer P365.

The P365-XMACRO Backstrap features aggressive and deep channels which maximize contact surface and enhance overall grip, all while remaining forgiving on the hands. The palm swell allows for a repeatable connection resulting in more control of the firearm. This consistency leads to improved performance/accuracy and quicker follow-up shots.

The P365-XMACRO Magazine Well also aids in hand positioning by providing another key point of contact at the bottom of the grip module. The enhanced feed walls ensure reliable tactical and administrative reloading while maintaining a streamlined design. The low-profile characteristics of the system limits printing while concealed carrying as well as reducing snagging occurrences during holstering and unholstering. The Magazine Well maintains compatibility with all OEM P365-XMACRO magazines and base plates/extensions.

The Radian P365-XMACRO Backstrap and Magazine Well install using a precision machined dovetail interface with spring-loaded retention stud to lock the two components in place – no screws to come loose or break.

TECH SPECS:

Aircraft grade aluminum

COMPATIBILITY:

Sig Sauer P365 XMacro Grip Module

WHAT'S INCLUDED:

1 - Backstrap

1 - Magazine Well

1 - Retention Stud & Spring

1 - Retention Stud Tool

INSTALLATION INSTRUCTIONS:

STEP 1 | Remove the OEM backstrap pin using a 1/8” punch.

STEP 2 | Slide the OEM backstrap downwards until it separates from the grip module.

NOTE | The installation of the Radian P365 XMACRO Backstrap does not mirror the OEM backstrap installation. To avoid damaging your grip module, it is important to follow these instructions.

STEP 3 | Align the widened portion of the cavity on the Radian P365 XMACRO Backstrap with the bottom T-Lug on the grip module, this will allow the backstrap to drop down on the grip module. Then slide the backstrap up to engage on the "T-lugs".  The backstrap should be flush with the bottom opening of the grip module.

STEP 4 | Place the grip module into an upside-down orientation and insert the provided plunger and spring (spring side first) into the cavity in the bottom of the Radian P365 XMACRO Backstrap.

STEP 5 | Slide the Radian P365 XMACRO Magwell over the firearm’s magazine well following the groove at the bottom of the grip module until the female dovetail is indexed with the male dovetail on the Backstrap.

STEP 6 | Using the provided tool, depress the plunger while putting rearward pressure on the magwell. The magwell should lock into place completing the installation.

STEP 7 | To remove, depress the plunger through the hole in the bottom of the magwell while applying pressure away from the dovetail interface. Slide backstrap down until it bottoms out and pull away from the grip module.

CAGE CODE:

8BMX3
