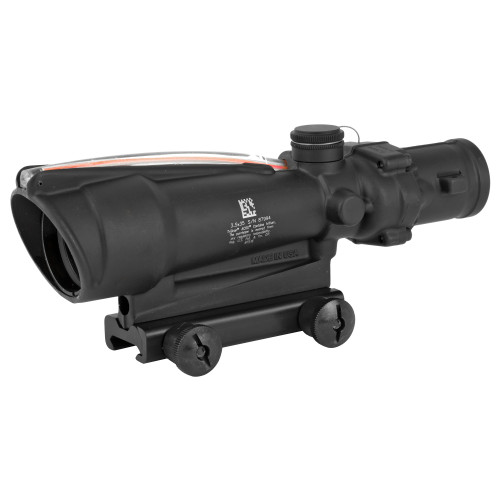

ACOG 3.5x35 scope with Red Crosshair Reticle—the ranging reticle is calibrated for 7.62mm (.308 cal) flat-top rifles to 1200 meters. Includes Flat Top Adapter. Daytime illumination is provided by fiber optics and Tritium illuminates the scopes at night.
FEATURES:
SPECS:
Length x Width x Height: 8 in x 2.1 in x 2.9 in (203.2mm x 53.34mm x 73.66mm)
Weight: 14 oz. (396.89g)
Magnification: 3.5x
Objective Size: 35mm
Reticle Pattern: Crosshair
Day Reticle Color: Red
Night Reticle Color: Red
Bullet Drop Compensating (BDC): Yes
Caliber: .308 / 7.62
Bindon Aiming Concept™ (BAC): Yes
Illumination Source: Fiber Optics & Tritium
Power Source: Fiber Optics & Tritium
Adjustment: ½ MOA per click
Eye Relief: 2.4 in. (60.96mm)
Exit Pupil: 0.39 in. (9.91mm)
Field of View (degrees): 5.5°
Field of View (feet): 28.9 ft. @ 100 yds. (9.63m @ 100m)
Mount: Flattop Thumbscrew Mount (TA51)
Housing Material: Forged Aluminum
Finish: Matte Black
INCLUDES:
Thumbscrew Flattop Adapter (TA51)
3.5x35 Scopecoat (TA63)
LENSPEN (TA56)
Lanyard Assembly for Adjuster Caps (TA71E)
Trijicon Logo Sticker (PR15)
ACOG BAC Manual
Warranty Card
3.5x35 Scopecoat (TA63)
LENSPEN (TA56)
Lanyard Assembly for Adjuster Caps (TA71E)
Trijicon Logo Sticker (PR15)
ACOG BAC Manual
Warranty Card
FROM https://www.trijicon.com/support/warranty. If a product has the Trijicon® logo on it, then it’s built to work flawlessly no matter what. However, should you experience some issue, rest assured that Trijicon warrants all products manufactured by Trijicon to be free from defects in material and workmanship for the lifetime of the original owner. Trijicon will repair or replace (at our option) the registered product. This warranty does not apply to defects caused by anything which is deemed abnormal, abusive, or improper, including any fault resulting from an accident or improper service. This warranty specifically applies to the optical systems and metal structure of the product and does not apply to the illumination system. AccuPoint®, ACOG®, ACOG® Crossbow Scope, RMR® (Dual-Illuminated Version): The tritium lamp is warranted to glow for fifteen (15) years in fiber optic scopes and ten (10) years in non-fiber optic scopes from date of original manufacture. Please note that tritium will dissipate over time. This is normal and is not covered under warranty if deemed to be in line with standard dissipation progression. Trijicon does offer the option to re-lamp Trijicon optics if sights are not under warranty and new lamps are requested. FOR MORE INFO PLEASE VISIT https://www.trijicon.com/support/warranty
- Manufacturer Part Number:
- TA11J-308
