SPEED TO TARGET AND HAIR-SPLITTING PRECISION IN PERFECT HARMONY.
FEATURES
Aircraft Grade
Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push-button illumination controls for tracking east. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece
Fog Resistant
Nitrogen gas purging prevents internal fogging over the operating temperature range.
Nitrogen gas purging prevents internal fogging over the operating temperature range.
Shock Resistant
The rugged design prevents damage from heavy recoil and rough handling.
The rugged design prevents damage from heavy recoil and rough handling.
Water Resistant
The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.
The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.
Anti-Reflective Lenses
XC™ high-density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.
This is an optic that feels at home on the AR platform or on a bolt action rifle. The EOTECH Speed Ring reticle allows for fast target engagement at low power, but at higher power provides the resolution and accuracy required to tackle longer shots. The Vudu 1-6X is the perfect solution for short- to medium-range applications.
XC™ high-density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.
TECHNICAL SPECIFICATIONS
OverviewThis is an optic that feels at home on the AR platform or on a bolt action rifle. The EOTECH Speed Ring reticle allows for fast target engagement at low power, but at higher power provides the resolution and accuracy required to tackle longer shots. The Vudu 1-6X is the perfect solution for short- to medium-range applications.
First Focal Plane
Overall Length: 10.63" (270 mm)
Weight: 20.1 oz (570 g)
Magnification: 1-6X
Tube Diameter: 30 mm
Objective Diameter: 24 mm
Power Source: CR2032
Eye Relief: 1X: 3.27-3.94" (83-100 mm) 6X: 3.23-3.94" (82-100 mm)
Field-of-View @ 100 Yards: 1X: 102.4 ft (31.2 m) 6X: 16.7 ft (5.09 m)
Country of Origin: Made in Japan
INCLUDED IN THE BOX
- Vudu® 1-6X24 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Lens Cleaning Cloth
- Battery

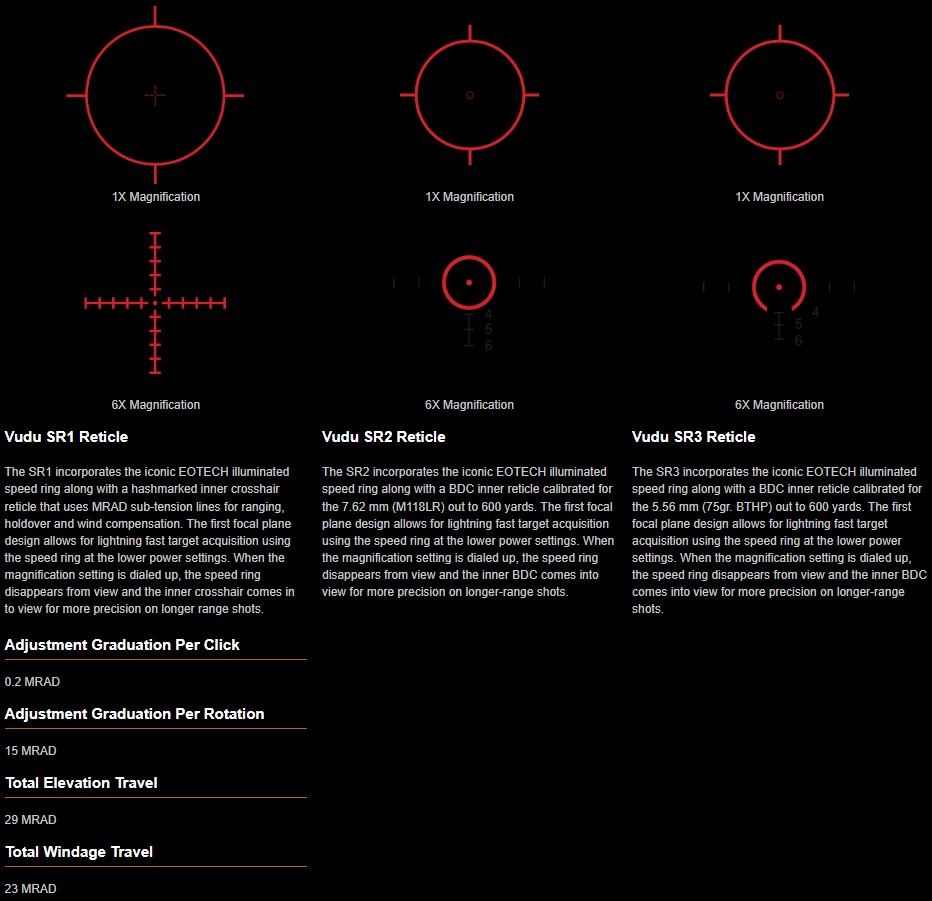

RETICLE SPECIFICATIONS
