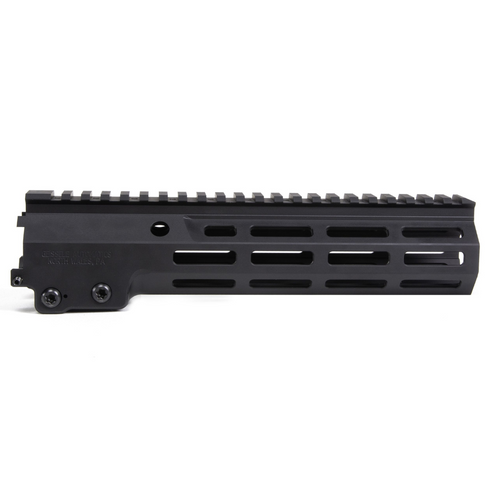

The Geissele Super Modular Rail MK16 offers unmatched performance for the most demanding shooters. Mounted to your AR-15 upper using the updated version of the proven Geissele Barrel Nut design, the MK16 is not only easy to install and maintain, but offers superior rigidity. Anti-rotation tabs and set-screws ensure that your rail will not rotate, even under the most extreme conditions of use. M1913 picatinny rail on top and M-LOK™ slots on every quadrant ensures maximum customization for all your accessories. The Geissele SMR MK16 is precision machined using 7000 Series Aluminum due to its strong, rigid and light properties, and is finished in durable Type-3 Hardcoat anodized. Also available in 9.3", 10.5", and 15" lengths!
The Super Modular Rail 13.5" (SMR) MK16 M-LOK®, NSN# 1005-01-672-4794 (13.5”), has been adopted by USASOC for the URG-I program (Upper Receiver Group Improved).
| HEIGHT: | 2.39" |
| COLOR: | Black, DDC, Gray, ODG |
| MATERIAL: | 7000 Series Aluminum |
| FINISH: | Type 3 Hardcoat Anodize |
| AVAILABLE LENGTHS: | 9.3", 10.5", 13.5", 15" |
| INNER DIAMETER: | 1.26" |
| OUTER DIAMETER (DAQ*): | 1.59" |
| SMR MK16 9.3" WEIGHT: | 10.1oz (11.74oz w/ barrel nut) |
| SMR MK16 10.5" WEIGHT: | 11oz (12.6oz w/ barrel nut) |
| SMR MK16 13.5" WEIGHT: | 13.4oz (14.9oz w/ barrel nut) |
| SMR MK16 15" WEIGHT: | 14.2oz (15.8oz w/ barrel nut) |
*DAQ - Distance Across Quadrants
Click Here to review Geissele's DDC (Desert Dirt Color) disclaimer before purchasing.
Geissele rails are designed to work with Mil-Spec M4 upper receivers. The compatibility with billet receiver sets is unknown.
NOTE: IF THIS IS YOUR FIRST TIME PURCHASING A GEISSELE AUTOMATICS RAIL, YOU WILL NEED TO PURCHASE A BARREL NUT WRENCH IN ORDER TO PROPERLY INSTALL THE RAIL. CLICK HERE TO PURCHASE
- Manufacturer Part Number:
- 05-651
- Sub Category:
- Handguards and Rails
- Handguard Style:
- M-LOK
- Length:
- 9.3"
- Material:
- Aluminum
